Marlin Sunshades

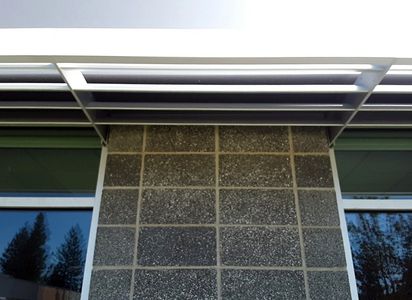

North Central High School - Spokane, WA

Sunshades

S-10 Outrigger System

Eco-Soleil Single Blade System

Eco-Soleil Single Blade System

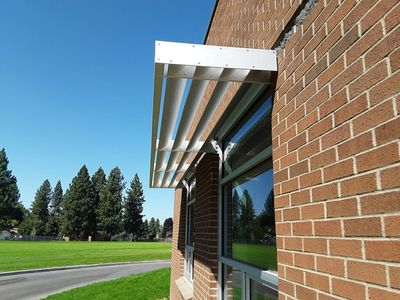

Our S-10 sunshades add an attractive design element to your building.  They obstruct undesired sun and reduce solar heat gain while allowing natural light into your building.


Standard depth is 30".

Eco-Soleil Single Blade System

Eco-Soleil Single Blade System

Eco-Soleil Single Blade System

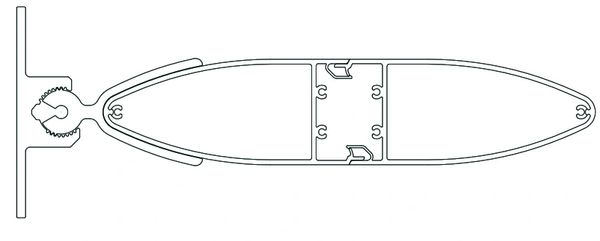

Our Eco-Soleil uses a single blade shade has a variety of options, with blade sizes from 6" to 14".    This sunshade is designed for use with all of Marlin System 60 Curtain Wall


This shade can be attached vertically or horizontally with the horizontal design allowing for multiple rows of blades per opening.  The versatile attachment bracket does not compromise the thermally separated integrity of the curtain walls, while allowing for a variety of installation angels from 0 to -35° and from 0 to +35°.


The Eco-Soleil sunshade can be customized to many configurations, including inside and outside

Specs & Details

Sunshade - S-10 (pdf)Download
Sunshade - S-10 (dwg) (zip)Download
Sunshade - Eco-Soleil (pdf)Download
Sunshade - Eco-Soleil (dwg) (zip)Download

Other Downloads

Cleaning & Maintenance of Aluminum (pdf)Download
MSDS - Wrought Aluminum Products (pdf)Download
Proper Prodecures for Cleaning Architectural Glass Products (pdf)Download
Proper Prodecures for Cleaning Flat Glass Mirrors (pdf)Download
Protecting Flat Glass Surfaces (pdf)Download
Standard Warranty (pdf)Download

Specifications

Eco-Soleil

GENERAL

Aluminum framing shall be Marlin Eco-Soleil System as manufactured by Marlin windows.  Developed to meet the demands of buildings designed to lower energy usage, as well as providing architectural appeal.  This single blade shade has a variety of options, with blade sizes from 6" to 14"


MATERIALS

Extruded from 6063-T5 aluminum with a minimum wall thickness of .125.  Wall thickness is increased to .1875 at the bracket attachment location.  This sunshade is designed for use with all of Marlin System 60 Curtain Wall


FINISH

Standard architectural Class II anodic color conforming to Aluminum Association AA-M12-C22-A34 for dark bronze or AA-M12-C22-A31 for clear anodized.  (Architectural Class I and Class II anodic finishes and organic coatings available - specify).


Custom paint to match virtually any color as selected by design teams


INSTALLATION

Framing shall be installed straight, plumb, and level without twisting and securely anchored in place.


PROTECTION AND CLEANING

The General Contractor shall provide adequate protection of the aluminum and glass surfaces from damage by grinding compound, lime, acids, cement or other contaminants.  The General Contractor shall be responsible for final cleaning.


S-10 Sunshade



GENERAL

Aluminum framing shall be Marlin S-10 Outrigger System as manufactured by Marlin windows.  Developed to meet the demands of buildings designed to lower energy usage, as well as providing architectural appeal.  This single blade shade has a variety of options, with blade sizes from 6" to 14"


MATERIALS

Extruded from 6063-T5 aluminum with a minimum wall thickness of .125.  Wall thickness is increased to .1875 at the bracket attachment location.  This sunshade is designed for use with all of Marlin System 60 Curtain Wall


FINISH

Standard architectural Class II anodic color conforming to Aluminum Association AA-M12-C22-A34 for dark bronze or AA-M12-C22-A31 for clear anodized.  (Architectural Class I and Class II anodic finishes and organic coatings available - specify).

Custom paint to match virtually any color as selected by design teams


INSTALLATION

Framing shall be installed straight, plumb, and level without twisting and securely anchored in place.


PROTECTION AND CLEANING

The General Contractor shall provide adequate protection of the aluminum and glass surfaces from damage by grinding compound, lime, acids, cement or other contaminants.  The General Contractor shall be responsible for final cleaning.
