Marlin Aluminum Windows


Marlin Windows offers a full line of thermally efficient aluminum windows in a commercial line by combining a rigid polyurethane "thermal barrier" as an integral part of commercial rated window extrusions.


Marlin has the products to fulfill your architectural and mechanical requirements within your budget parameters. Each Marlin commercial window is custom factory-fabricated with positive sealing weatherstripping, quality hardware and extruded aluminum glass stops to ensure long lasting performance.


Our commercial products are available with or without nailing flange and make an excellent upgrade for residential applications.

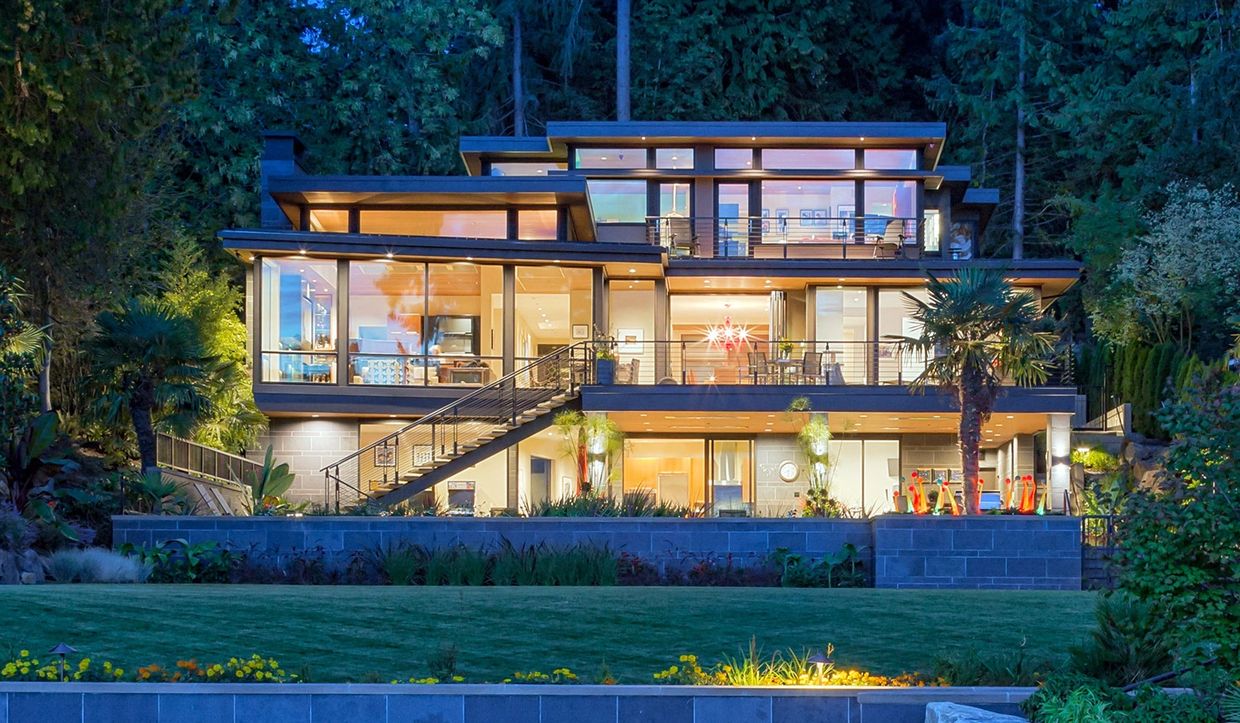

Sturdy construction, unexcelled vision area, and versatile architectural applications make these windows a popular choice for a wide variety of residential and commercial building styles.

Clean, modern styling and durable anodized finishes make these windows as attractive as they are functional.

Window Styles

1505 Series Fixed


2 1/4" Frame Depth

1505 Series Casement


2 1/4" Frame Depth

1505 Series Awning/Hopper


2 1/4" Frame Depth

3500 Series Horizontal Slider

3 3/8" Frame

3 3/8" Frame Depth


 The interlocking mullion has been designed with a cam lock to provide maximum security.

Each vent features two adjustable wheels that roll on a track that is an integral part of the sill member to provide for smooth and quiet operation.


Minimum Rough Opening Dimension

Width - 24"   Height - 12"


Minimum Egress Dimension

48 x 45 / 60 x 36

3502 Series Single Hung


 3 3/8" Frame Depth



Our Single Hung Slider provides  all the features required for use in cold climate areas.  Efficient insulated glazing in a thermally broke sash and frame, with a fully  weatherstripped sash combine to reduce heating and cooling requirements.


Minimum Rough Opening

Width - 12"   Height - 24"


Vent Heights

Minimum -  12"   Maximum - 36"


Minimum Egress Dimensions

30 x 72 / 36 x 62 / 38 x 60

Finishes

Marlin offers both anodized and painted finishes in any available specification or color. Because custom colored windows require extended lead times for color selection, sample submittal, and production as well as additional cost for setup  and minimum order quantities, Marlin recommends this as an option for larger projects that allow for added time.


Marlin inventories the two most popular anodized finishes - dark bronze and clear anodized for all of our window series.  We also stock black anodized for our fixed, casements & awnings.   In addition, Marlin's commercial line windows are also available in a white painted finish, since  these products are often used as a residential upgrade.


t.i.e. technology

Extruded aluminum has proven over time to be the best material for long lasting,  low maintenance commercial windows. Marlin Windows uses high quality aluminum  alloys best suited for window applications. All Marlin windows use extruded  exterior glass stops to allow matching anodized finishes and provide extra  strength under negative window loads.


Marlin thermally improved extrusions are accomplished by placing a specially designed cavity in the extrusion that is filled with a high density polyurethane. The bottom side of the cavity is then debridged with a saw,  resulting in two separate extrusions that are held together by the polyurethane  "thermal barrier". This provides a higher resistance to heat loss and  condensation.


hardware

Roto Hardware


For project-out vent.  Mounted at vent bottom, it allows for approximately 10" of opening.  The double arm design also helps achieve corner pull-in and vent stability.

High-pressure die-cast zinc case, crank handle and knob.  Hardened steel worm and gear arm.

Push-Out Handle


Bronzecraft standard push/pull & locking handle for casement and project-out  windows.


Project-In Handle


Bronzecraft push/pull locking handle for operation of in-swing vents.

Locking Handle


Allows for special key to lock or unlock.

Butt Hinge


Cast  bronze alloy exposed hinge is standard on casements with roto operators or push out hardware.

4-Bar Hinge


Stainless steel self-balancing hinge.  Standard for awnings,  hoppers and inswing casements.  Friction adjustment holds windows open at any position.

Find out more

Friction Arm


Marlin's projected windows are balanced with either one or two heavy duty four bar friction   hinges.  Friction hinges are stainless steel and include a positive stop and an adjustable friction shoe.

Custodial Lock


 Allows for control of vent operation. Requires special key to lock or unlock.

Pole End


For opening or closing clerestory or high-mounted windows.

Pole End Handle


For clerestory or high-mounted project-In vents

Cam Lock


Standard on single hung's and horizontal sliders.

Positive thumb operated sweep cam lock provides maximum security

Specfications


GENERAL

Fixed, projected and casement windows shall be Marlin series #1505 as manufactured by Marlin windows, and conform to AAMA-101-93 structural performance as follows:


1505 Fixed Window    F-HC65

1505 Casement          C-C65

1505 Projected            P-C65


Series 1505 shall have a  AAMA 1503 condensation-resistance factor (CRF) of not less than 56 and a  NFRC 500  condensation-resistance (CR) of not less than 31.


Horizontal sliding windows shall be Marlin series #3500 (thermally improved) as manufactured by Marlin Windows, and shall conform to ANSI/AAMA 101-88 HS-C30. Series #3500 shall have a AAMA 1503 condensation resistance factor of 58  and a  NFRC 500  condensation-resistance (CR) of not less than 32.


Single Hung sliding windows shall be Marlin series #3502 (thermally improved) as manufactured by Marlin Windows, and shall conform to ANSI/AAMA 101-88 DHC-C30. Series #3502 shall have a condensation resistance factor of 58.  shall be Marlin series #3500-HC (thermally improved) as manufactured by Marlin windows, and shall conform to ANSI/AAMA 101-88 HS-HC40.  Series #3500 shall have a AAMA 1503 condensation resistance factor of 58  and a  NFRC 500  condensation-resistance (CR) of not less than 32.


MATERIALS

All  frame and sash members shall be aluminum extrusions of 6063-T5 alloy & temper  with a minimum wall thickness of .094". Frame and sash members shall have a  rigid polyurethane "thermal-barrier" as an integral part of the extrusion which  eliminates all direct contact between interior and exterior aluminum sections.  Glazing stops to be extruded aluminum with a minimum wall thickness of .050".


FINISH

Standard architectural Class II anodic color conforming to Aluminum Association  AA-M12-C22-A34 for dark bronze or AA-M12-C22-A31 for clear anodized.  (Architectural Class I anodic finishes and organic coatings available).


FIXED, CASEMENT, PROJECTED CONSTRUCTION

Frame members shall be 2 1/4" or 3 3/8" depth. Frame and vent corners shall be  fabricated to form tight mitered joints. All intermediate frame members shall be  coped to form tight butt joints where joined to perimeter members. All joinery  fastened securely with stainless steel self-tapping screws and sealed to prevent  moisture and air infiltration. Extruded aluminum glass stops shall be fabricated  to form tight butt-joints.  Maximum vent size 36"x 66" or 30" x 72".


HORIZONTAL SLIDER & SINGLE HUNG CONSTRUCTION

Frame members shall be 3 3/8" in depth.  Frame and vent corners shall be fabricated to form tight mitered joints.  Fixed interlock members shall be fabricated to form tight butt-joints where joined to frame members.  All joinery fastened securely with stainless steel self-tapping screws and sealed to prevent moisture and air infiltration.  Sill members shall allow drainage of moisture to the exterior, but reduce direct inflow of wind, moisture and dirt.  Sill tracks shall be extruded as an integral part of the sill member.  Extruded aluminum glass stops shall be fabricated to form tight butt-joints.


PROJECTED HARDWARE

Projected shall be balanced with two heavy duty four bar friction hinges. Hinges  shall be of stainless steel, and include a positive stop and an adjustable  friction shoe. Locking hardware shall consist of cam handle locks and surface  strikes. Handle, base & strike housing shall be cast white bronze with burnished  finish. Roto operators and underscreen bar operators are available.


CASEMENT HARDWARE

Casement windows shall be supported by exposed hinges manufactured from cast  bronze alloy and secured with concealed fasteners, or by heavy duty 4 bar  concealed friction hinges. Roto type operation with locking handles and  concealed strikes shall be standard with exposed hinges. Other variations of  hardware and finish available.


HORIZONTAL SLIDER & SINGLE HUNG HARDWARE

Sash shall incorporate adjustable steel ball bearing wheel assemblies at the bottom corners.  Rigid vinyl guides shall be located on the top and bottom rails at each corner of the sash to assure smooth operation.  A continuous pull handle shall be a part of the interlock stile.  A thumb operated latch shall be attached to the interlock stile and shall engage a channel in the fixed interlock when the sash is fully closed.  Optional secondary slide bolt available for partial vent opening.  Optional stainless steel track recommended for intended heavy use.


FIXED, CASEMENT, PROJECTED WEATHERSTRIPPING

A compression seal shall run continuously around entire perimeter of ventilator  and frame opening of ventilator to form a double seal.


HORIZONTAL SLIDER & SINGLE HUNG WEATHERSTRIPPING

Ventilating sash shall have continuous weather-stripping of silicone treated wool pile incorporating a polypropylene fin to insure longer life with better resistance to wind and moisture infiltration.  Weather-stripping shall extend around the entire perimeter of the vent.


GLAZING

Marlin series #7505 windows shall accept glazing materials with nominal  thickness of 1/4", 1" & 1 /7/16".


HORIZONTAL SLIDER & SINGLE HUNG GLAZING

Marlin system #3500 shall be glazed with 1" overall insulating glass.  The ventilator shall be 'marine' type glazed with a continuous vinyl channel gasket.  The fixed glass shall be set on blocks, back bedded in foam glazing tape and retained by an extruded aluminum stop.


OPTIONAL SCREEN

Screen frames shall be fabricated from roll-form aluminum finish to match  window. Screen cloth to be 18 x 16 fiberglass mesh held in the aluminum screen  frame with a tight fitting continuous vinyl spline.


INSTALLATION

Windows shall be installed straight, plumb, and level without twisting and  securely anchored in place. Openings shall be properly prepared to provide  sufficient space at jambs, head and sill to compensate for normal construction  movement without affecting intended use.


PROTECTION AND CLEANING

The  General Contractor shall provide adequate protection of the aluminum and glass  surface from damage by grinding compound, lime, acids, cement or other  contaminants. The General Contractor shall be responsible for final cleaning.
